Also Known As:
The CLT100N-125M630 1250Ft Corrugated Loom Tubing Slit Wall Nylon6 can also be called:
• Cable Management Loom
• Wire Protection Tubing
• Nylon Corrugated Cable Sleeve
• Protective Wire Cover
• Flexible Conduit
About:

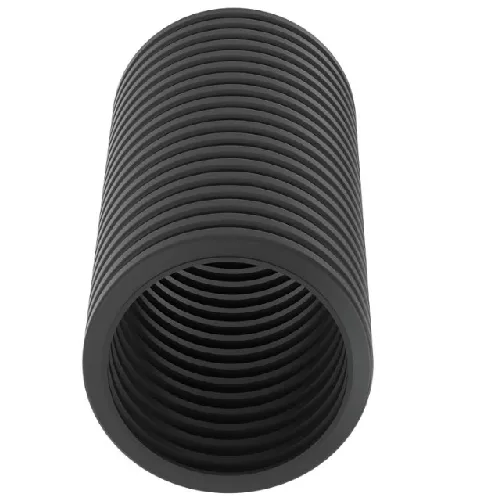

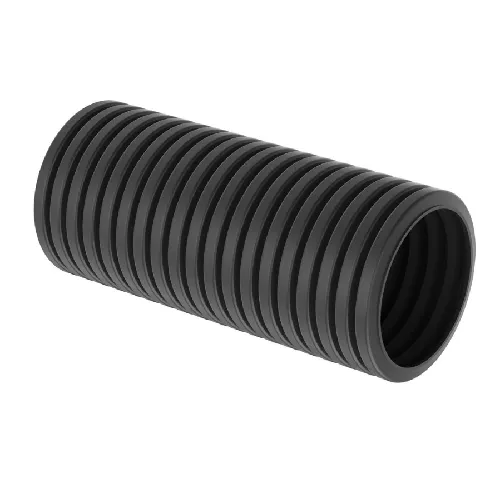

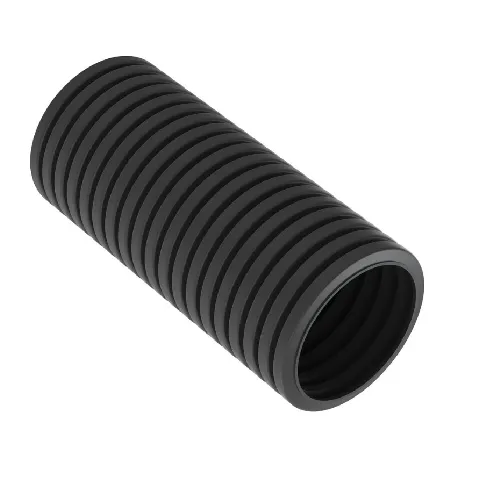

This specific model of corrugated loom tubing, made from Nylon 6, is engineered to offer excellent cable protection, organization, and management over a length of 1250 feet. It’s designed for diverse environments, offering a combination of flexibility, durability, and resistance to various environmental factors.
Specification:
| Note | Slit Wall |
| Product Type | Corrugated Loom Tubing |
| Color | Black |
| Environment | Indoor |
| Flammability Rating | UL94-HB |
| Inside Diameter (In.) | 0.917 |
| Inside Diameter (mm) | 23.29 |
| Material | Nylon 6 |
| Resistance Properties | Provides light crush and impact resistance |
| Maximum Operating Temperature (°C) | 110 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°F) | 230 |
| Minimum Operating Temperature (°F) | -40 |
| Nominal Diameter (In.) | 1 |
| Nominal Diameter (mm) | 25.4 |
| Outer Diameter (In.) | 1.114 |
| Outer Diameter (mm) | 28.3 |
| Overall Length (ft.) | 1250 |
| Overall Length (m) | 381 |
| Part No: | CLT100N-125M630 |
Common Applications:
• Covers wire and cable to protect from abrasion
Features:

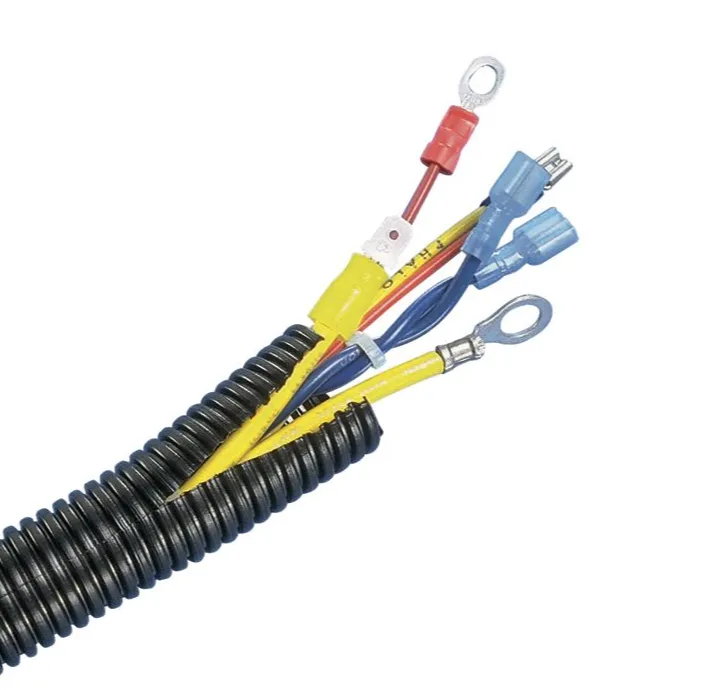

• Provides protection for cables. Slitted for easier install onto a bundle of wires or a pre-assembled harness assembly
Standards Met:
Depending on the application and region, this product may adhere to standards like:
• UL Rating: For quality, safety, and performance in electrical and electronic applications.
• RoHS Compliance: Ensuring the tubing is free of hazardous substances.
• ISO Certifications: Depending on the application, it may meet specific ISO standards for quality and safety.
Construction:
• Material: Constructed from high-quality Nylon 6, offering excellent mechanical strength and environmental resistance.
• Design: Features a corrugated, slit-wall design that combines flexibility with ease of cable insertion and removal.
• Length: Available in a 1250-foot roll, ensuring ample material for large-scale applications.
• Temperature Resistance: Capable of operating within a wide temperature range, making it suitable for diverse environments.
