Product Details

[pdf] [/pdf]

Also Known As:

The CLT100N-C630 100Ft Corrugated Loom Tubing Slit Wall Nylon6 can also be called:

• Nylon Corrugated Cable Sleeve
• Wire Protection Tubing
• Cable Management Loom
• Flexible Conduit
• Protective Wire Cover

About:

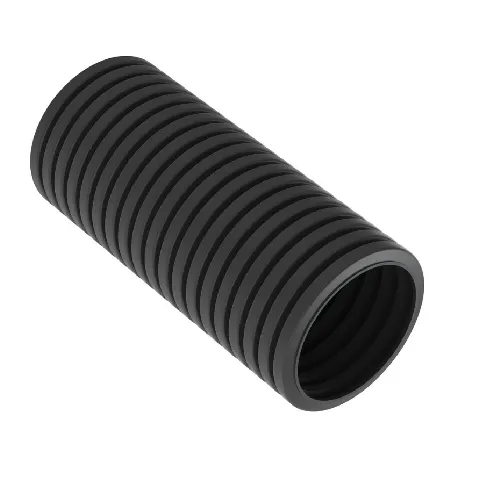

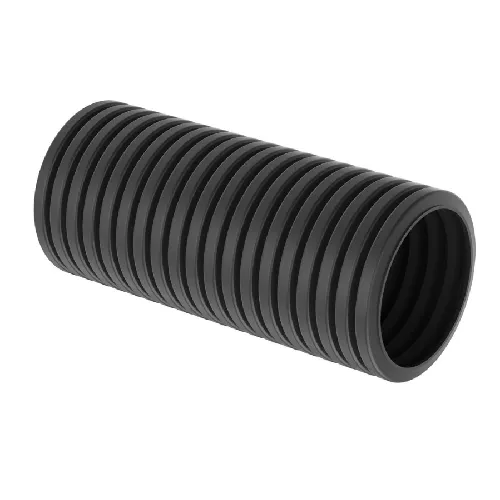

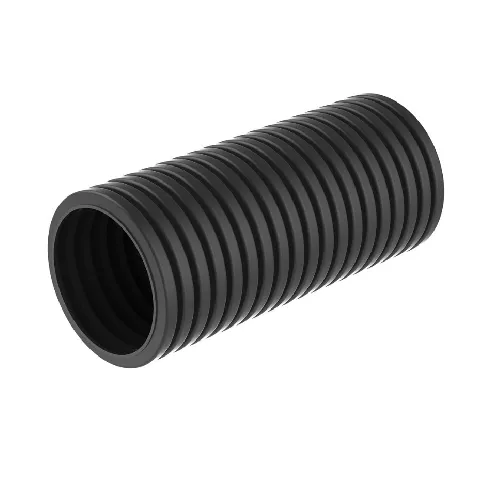

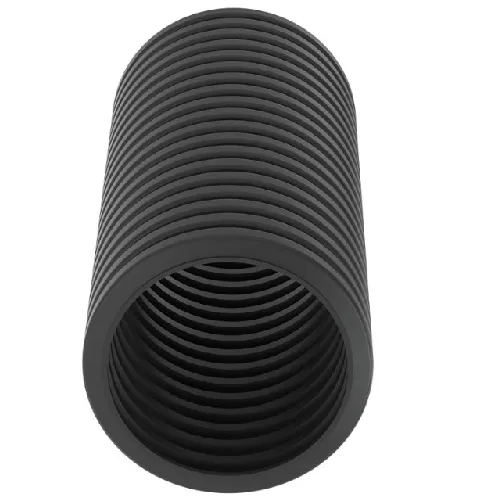

This specific model of corrugated loom tubing, made from Nylon 6, is engineered to offer excellent cable protection, organization, and management over a length of 100 feet. It’s designed for diverse environments, offering a combination of flexibility, durability, and resistance to various environmental factors.

Specification:

Note Slit Wall
Product Type Corrugated Loom Tubing
Color Black
Environment Indoor
Flammability Rating UL94-HB
Inside Diameter (In.) 0.917
Inside Diameter (mm) 23.29
Material Nylon 6
Resistance Properties Provides light crush and impact resistance
Maximum Operating Temperature (°C) 110
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°F) 230
Minimum Operating Temperature (°F) -40
Nominal Diameter (In.) 1
Nominal Diameter (mm) 25.4
Outer Diameter (In.) 1.114
Outer Diameter (mm) 28.3
Overall Length (ft.) 100
Overall Length (m) 30.5
Part No: CLT100N-C630

Common Applications:

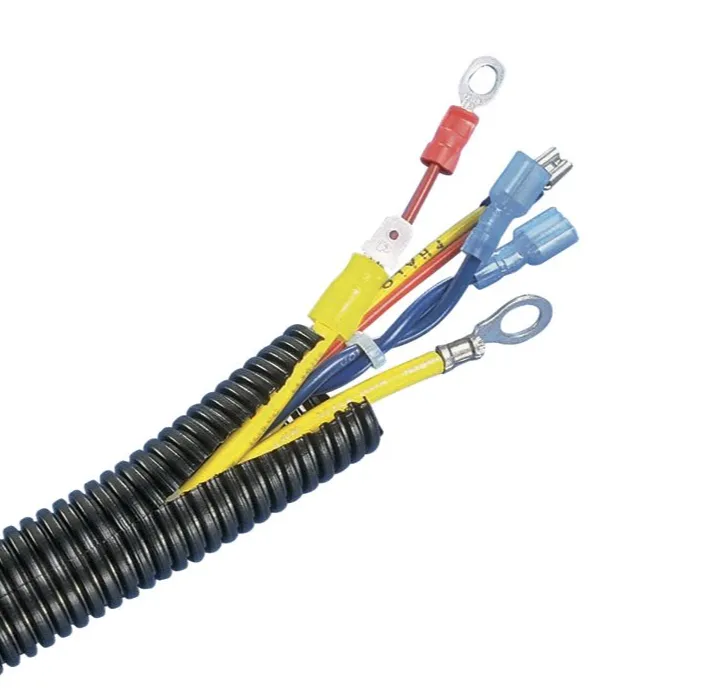

• Covers wire and cable to protect from abrasion

Features:

• Provides protection for cables. Slitted for easier install onto a bundle of wires or a pre-assembled harness assembly

Standards Met:

Depending on the application and region, this product may adhere to standards like:

• UL Rating:
For quality, safety, and performance in electrical and electronic applications.

• RoHS Compliance: Ensuring the tubing is free of hazardous substances.

• ISO Certifications: Depending on the application, it may meet specific ISO standards for quality and safety.

Construction:

• Material: Constructed from high-quality Nylon 6, offering excellent mechanical strength and environmental resistance.

• Design: Features a corrugated, slit-wall design that combines flexibility with ease of cable insertion and removal.

• Length: Available in a 100-foot roll, ensuring ample material for large-scale applications.

• Temperature Resistance: Capable of operating within a wide temperature range, making it suitable for diverse environments.

1 Corrugated Loom Tubing Slit Wall Nylon6 CLT100N-C630 100Ft
  • DefaultTitle

$ 56.03

$ 43.10
