Product Details
＋
All Prices Shown are Excluding GST.
-
Small Design for easy truss mounting

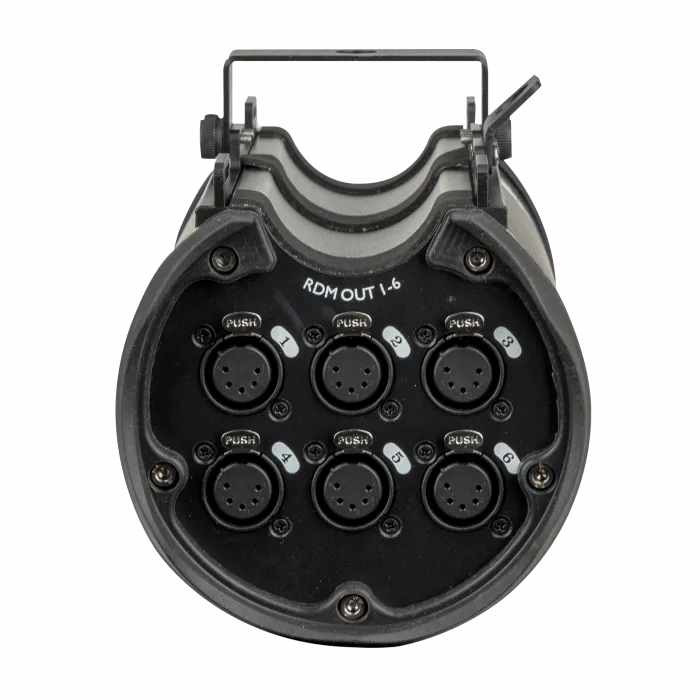

- DMX/RDM splitter for 6 outputs
- Power Pro in/out
- Supports Remote Device Management (RDM) Protocol

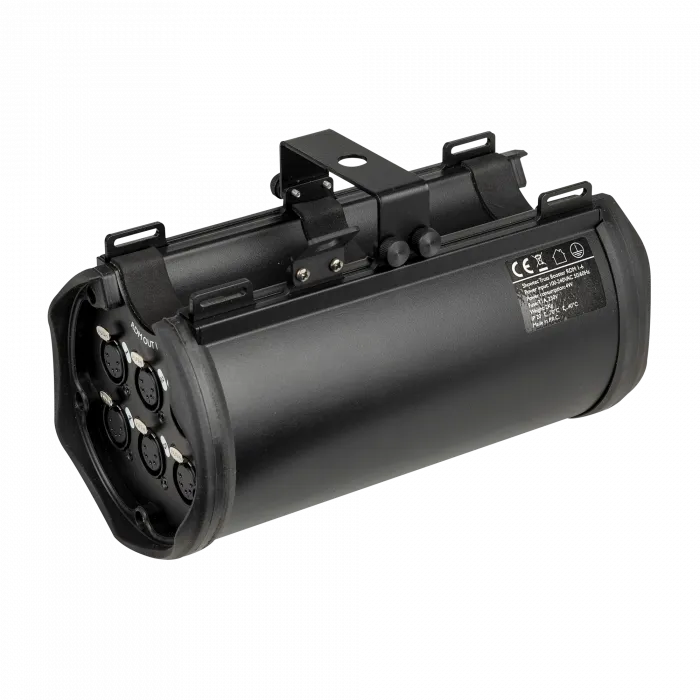

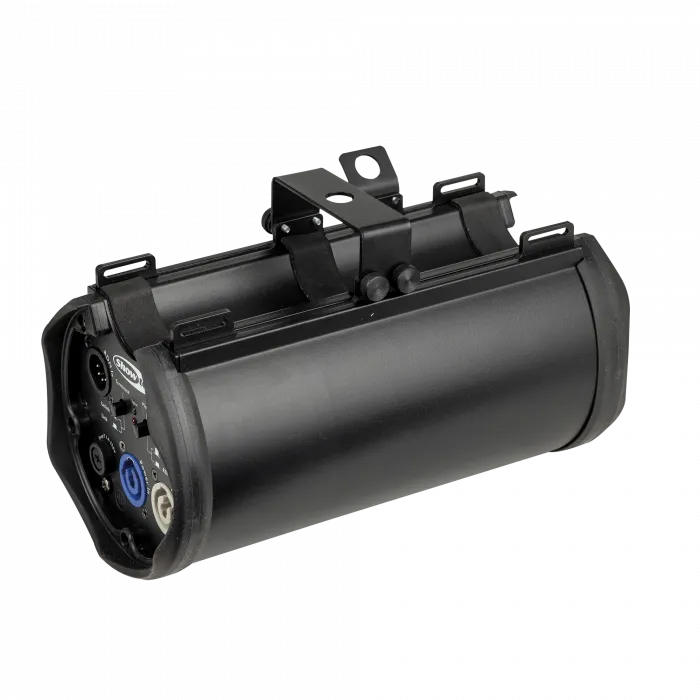

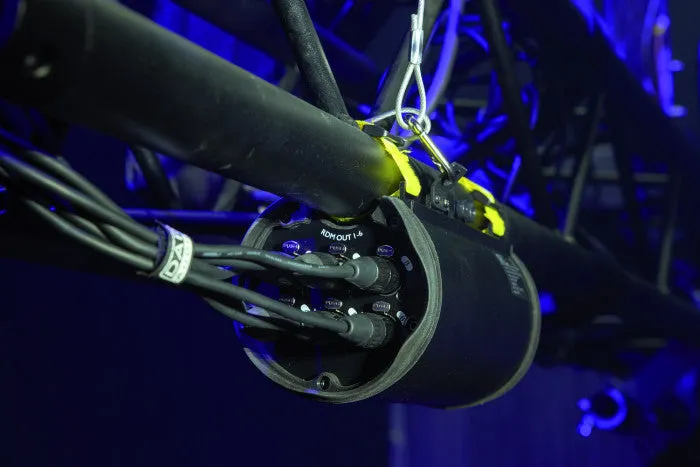

The Truss Booster RDM is a compact and nifty solution for splitting and boosting your DMX or RDM signal. Mounting on truss or onto pipes is possible in various ways by using the bracket or by adding hook and loop straps to the 4 slots. A rubber protection-ring on either side of the rugged housing makes this booster ideal for road productions.
Specifications
Control and Programming:
- Control Mode: DMX
- Protocols: DMX, RDM
- Universes: 1
Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50-60 Hz
- Power Consumption: 5 W

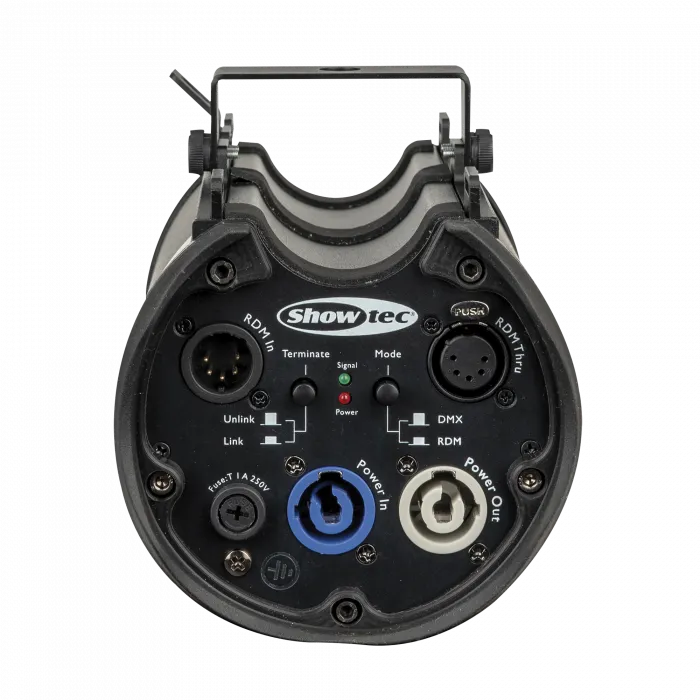

- Power Connector In: Power Pro Blue
- DMX Connector: XLR 5P In/Out
Mechanical Specifications:
- Length (mm): 240 mm
- Width (mm): 124 mm
- Height (mm): 150 mm
- Weight: 1.6 kg
- IP Rating: IP20 (indoor use only)
- Housing: Metal, Plastic
- Colour: Black
Misc:
- LED Indicators: Power, Signal
- Maximum Ambient Temperature: 55 °C
- Minimum Operating Temperature: -10 °C
